| Model | D-1007 |
|---|---|
| Irrigation pump | 2hp agricultural pump (Wilo pump : PUN-1850), |
| Control of nutrient solution |
Venturi injection type (30∼300L/hour). |
| Method of control |
Microprocessor (automatic control depending on thesetting by user) |
| Size | (L)92cm x (W)94cm x (H)110cm |
| Weight | 90Kg |
| Power source | 3-phase, 4-wire system, AC380V/ 3-phase, 3-wire system, AC220V. Single-phase, AC220V (option) |
- * Capacity of irrigation pump is subject to change depending on the orderer demand.
- * Product is subject to change without prior notice to improve its quality or capacity.

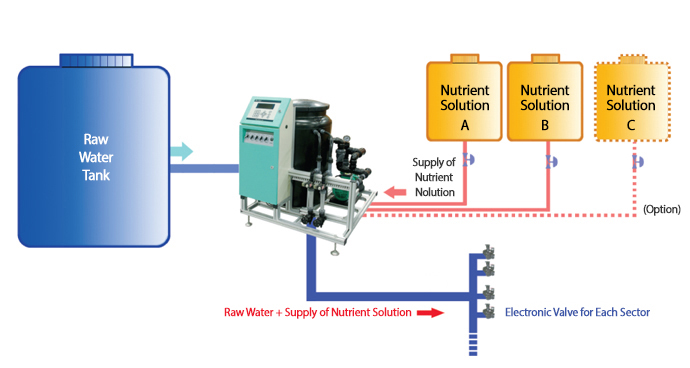

- Diagram for the installation of D-1007 system

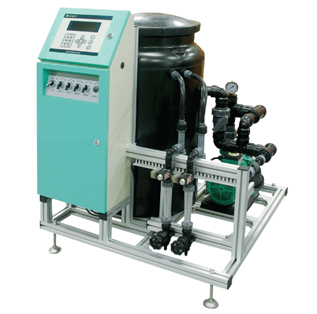

- Specification for D-1007 system

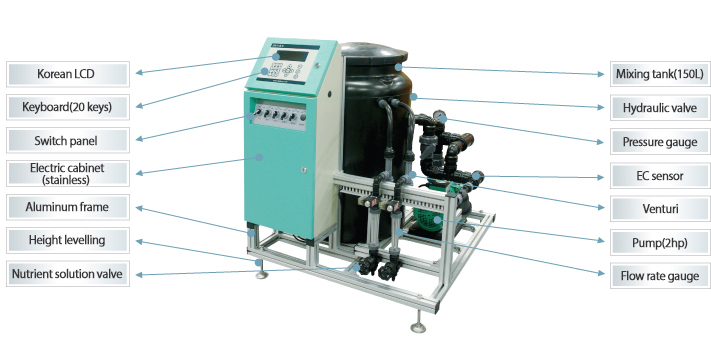

Features of D-1007 system
| Sector | Content | Others |
|---|---|---|
| Method of control |
•Time control : Irrigation works up to 24 times at the setting time •Interval control : Irrigation works depending on start/finish time/interval (minutes, seconds(max. 99 times) •External control : Irrigation works depending on the external signal (moisture sensor, etc)/start time/finish time |
On/Off sensor (Optional sensor) |
| Irrigation | •Irrigation by time : Irrigation works depending on the setting of time unit, "minute/second," per sector | |
| Nutrient solution |
•Basic(EC control) : A + B solution(optional pH control): C | ※ pH(option) |
| Electronic valve |
•Irrigation can be extended up to 12 sectors (additional sector is possible as options) |
|
| Features of the program |
•Irrigation setting : Setting of EC/pH/amount of irrigation per sector •Time control : Setting of nutrient solution to be used for each irrigation time •Irrigation report : Saving the amount/number of irrigation for 15 days •Warning of nutrient solution : Setting the limit of high/low value of EC/pH to give warning signal, shutdown. •Output test : Output test for the system can be performed •1 time irrigation :1 time irrigation works by one-touch button other than time setting •Pause : One-touch emergency shutoff function •Error display : Message & corrective action for error is displayed |
※pH(옵션) |
| Features of the program |
•Nutrient solution control valve on the front : Current value of nutrient solution can be controlled •Installation space can be minimized due to the solution control valve on the front •Anti-lightening circuit, components are built in •Big size of Korean LCD(Korean character 40x4) with bring screen •Hydraulic valve : Continuous & safe supply of raw water to mixing tank •Relief valve : Maintaining a stable pressure for irrigation per sector •U-PVC pipe : Durable & chemical-resistant valves/pipes were used •Switch box : Corrosion-resistant stainless steel was used •Main structure : Main body is made with 40mm x 40mm aluminum profile |
